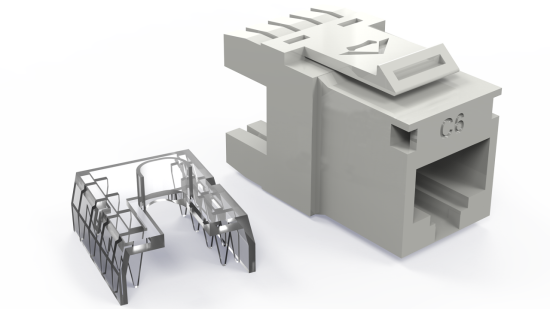

CONECTOR FÊMEA GIGALAN CAT.6 90°/180°

Compra mínima: unidade(s)

Compra máxima: unidade(s)

Acessório para conexões em salas de telecomunicação e área de trabalho.

ANSI/TIA-568.2-D

ISO/IEC 11801

EN 50173-1

IEC 60603-7

FCC parte 68

NBR 14565

IEEE 802.3bt (PoE++)

Características de performance
Freq., MHz	Return Loss Min. dB	Insertion Loss Max. dB	NEXT Min. dB	PSNEXT Min. dB
1	30.0	0.10	75.0	90.0
4	30.0	0.10	75.0	78.0
8	30.0	0.10	75.0	71.9
10	30.0	0.10	74.0	70.0
16	30.0	0.10	69.9	65.9
20	30.0	0.10	68.0	64.0
25	30.0	0.10	66.0	62.0
31.25	30.0	0.11	64.1	60.1
62.50	28.1	0.16	58.1	54.1
100	24.0	0.20	54.0	50.0
200	18.0	0.28	48.0	46.5
250	16.0	0.32	46.0	44.0

Características de performance
Freq., MHz	FEXT Min. dB	PSFEXT Min. dB	TCL Min. dB	TCTL Min. dB
1	75.0	80.1	40.0	40.0
4	71.1	68.1	40.0	40.0
8	65.0	62.0	40.0	40.0
10	63.1	60.1	40.0	40.0
16	59.0	56.0	40.0	40.0
20	57.1	54.1	40.0	40.0
25	55.1	52.1	40.0	40.0
31.25	53.2	50.2	38.1	38.1
62.50	47.2	44.2	32.1	32.1
100	43.1	40.1	28.0	28.0
200	37.1	36.6	22.0	22.0
250	35.1	34.1	20.0	20.0
