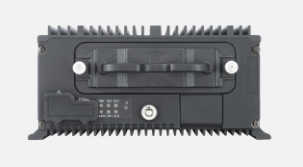

8-ch 1080p, H.265, 2 x HDD/SSD Mobile NVR

Compra mínima: unidade(s)

Compra máxima: unidade(s)

Supports 8-ch 2 MP IP cameras via PoE interfaces
Efficient H.265 compression technology
Supports up to 2 × 2.5 inch HDDs/SSDs (up to 2 TB for each), 1 × SD (up to 256 GB)
Supports 3G/4G and Wi-Fi modules for communication
Supports GPS positioning

Video/Audio Input
Câmera IP16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
Áudio Bidirecional1, integrated in EXT.DEV interface

Video/Audio Output
Saída De Vídeo1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
Saída De Áudio1

Armazenamento
HD/SSD
2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD

Dummy HDD with USB 3.0 interface
Cartão SD1 × SD card, up to 256 GB

Interface Externa
Interface De Rede2 × 10M/100M/1000M RJ45 Ethernet interface
Interface USB
Front panel: 1 × USB 3.0

Rear panel: 1 × USB 2.0 of 5-pin aviation plug
Entrada De Alarme4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
Saída De Alarme2 relay signal outputs
Porta Serial2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
Interface De CAN2
Entrada De Sensor4 high/low level signal inputs

Rede Sem Fio
Discagem 3G/4G1 × 3G/4G card slot, 1 × Rosenberger antenna
Wi-Fi
WI58 model: 2 × 5.8 G Wi-Fi SMA antenna

WI model: 1 × 2.4 G Wi-Fi SMA antenna

Geral
Temperatura De Funcionamento
Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F)

Other devices: -10 °C to +60 °C (14 °F to 140°F)
Umidade De Funcionamento10% to 95%
Fonte De Alimentação9 to 32 VDC
Consumo
Standby: ≤ 0.5 W

Full load: ≤ 99 W

Note: Without peripheral and storage media ≤ 20 W
Método De FuncionamentoMouse, IR remote control, Web control, and touchscreen
Dimensões (L×P×A)202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
Peso (Sem Mídia De Armazenamento)3.66 kg (8.07 lb)

Posicionamento
GNSS (Sistema Global De Satélites De Navegação)GPS (Global Positioning System), 1 × Rosenberger antenna

Encoding/Decoding Parameters
Compressão De VídeoH.264, H.265
Resolução De CodificaçãoMain stream: 1080p/720p/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF
Taxa De QuadrosPAL: 1 to 25fps; NTSC: 1 to 30fps
Compressão De ÁudioG.722
Tipo De TransmissãoVideo, video & audio
Taxa De Bits De Áudio16 Kbps
Transmissão DuplaSupported
