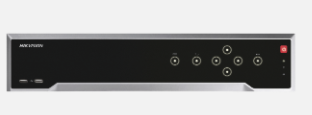

16-ch 1.5U AcuSense 4K NVR

Compra mínima: unidade(s)

Compra máxima: unidade(s)

Up to 16 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 12 MP high-definition live view, storage and playback
Up to 12-ch @ 1080p decoding capacity
Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
4 HDDs for continuous video recording
Compatible with third-party network cameras
4-ch false alarm reduction through human and vehicle target classification based on deep learning

Proteção De Perímetro
Human/Vehicle AnalysisFalse alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Video And Audio
Entrada De Vídeo IP16-ch
HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI. ,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA OutputHDMI,VGA
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Incoming Bandwidth256 Mbps/200 Mbps
Saída De Áudio1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Formato De DecodificaçãoH.265/H.265+/H.264/H.264+/MPEG4
Capacidade De Decodificação12-ch@1080p
Synchronous Playback16-ch
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF,
