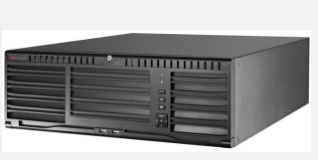

128-ch 3U 4K Super NVR

Compra mínima: unidade(s)

Compra máxima: unidade(s)

Up to 128 channel IP cameras can be connected
Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 1 VGA interfaces16 HDD can be used for continuous video recording
16 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Video And Audio
Entrada De Vídeo IP128-ch
HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
LCD OutputOptional: One 7 inch LCD
Incoming Bandwidth576 Mbps/512 Mbps
TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
Saída De Áudio1-ch. RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Formato De DecodificaçãoH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Capacidade De Decodificação3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)
Synchronous PlaybackUp to 16 channels
Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Rede
Protocolo De RedeIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Interface De Rede4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA16 SATA interfaces supporting hot-plug
ESATA1 × eSATA interface, 2 × mini SAS interface (optional)
CapacidadeUp to 10 TB for each HDD
Interface SerialRS-232; RS-485; Keyboard
Interface USBFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Entrada/Saída De Alarme16/8
Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
